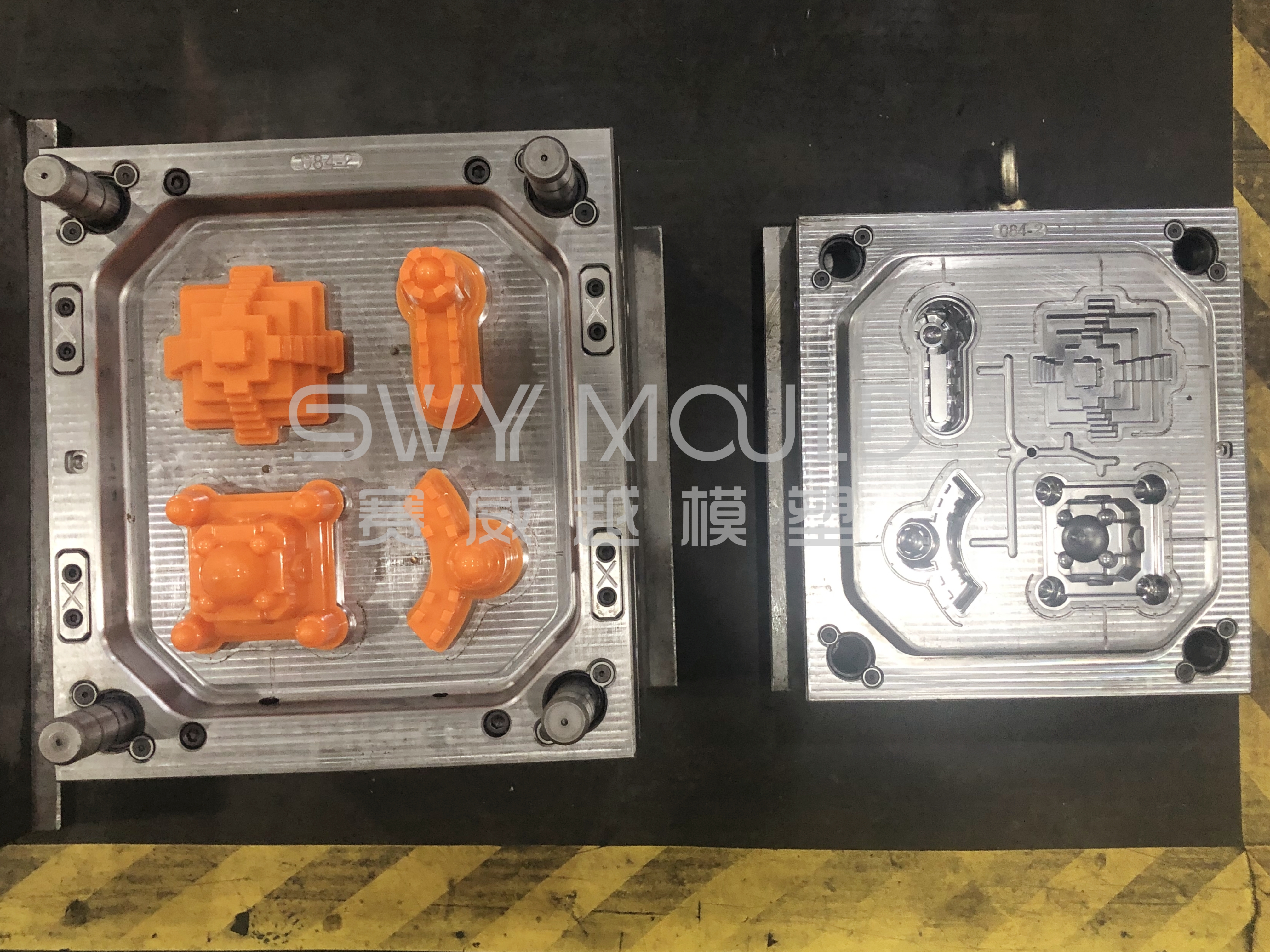

PP Injection Mould

Polypropylene (PP) is a semi-crystalline thermoplastic polymer known for its low density, chemical resistance, and excellent fatigue life. It's widely used in injection molding due to its ease of processing and cost-effectiveness.

PP is made from the polymerization of propylene monomers and exists in different types:

• Homopolymer PP: Stiffer and stronger, suitable for structural parts.

• Copolymer PP: More impact-resistant, used for parts needing better toughness (includes block and random copolymers).

⚙️ What Is PP Injection Molding?

PP injection molding is a manufacturing process in which molten polypropylene is injected into a steel or aluminum mold, then cooled and ejected as a solid plastic part.

The process includes:

1. Melting the PP pellets (at ~200–250°C),

2. Injecting the molten material into a mold,

3. Cooling and solidifying the part inside the mold,

4. Ejecting the finished part,

5. Post-processing (if required, like trimming or welding).

Properties of PP in Injection Molding

PP is hydrophobic, making it great for moisture-resistant applications.

Applications of PP Injection Molding

PP’s versatility lends itself to a wide range of industries:

✔ Consumer Products

• Food containers, bottles, caps, chairs, toys

• Hinged lids (due to excellent fatigue resistance)

✔ Automotive

• Bumpers, dashboards, battery housings, interior trims

✔ Medical

• Syringes, beakers, disposable medical items (non-implantable)

✔ Packaging

• Caps and closures, containers, films

✔ Household & Appliances

• Storage bins, laundry baskets, dishwasher-safe containers

️ Design & Processing Considerations for PP

✅ Mold Design

• Draft Angle: 1–2° for easy part ejection

• Wall Thickness: 1.5–3.5 mm is ideal; avoid sudden thickness changes

• Radii: Use generous radii to reduce stress points

• Ribs & Bosses: Recommended for added strength without thickening walls

✅ Processing Parameters

✅ Pros of PP Injection Molding

• Low Cost: One of the cheapest thermoplastics

• Lightweight: Excellent for applications where weight-saving matters

• Chemical Resistance: Performs well in harsh chemical environments

• Toughness: Especially in copolymer grades

• Fatigue Resistance: Ideal for parts with living hinges (e.g., flip-top caps)

• Recyclable: Environmentally friendly when processed properly

❌ Cons of PP Injection Molding

• Low UV Resistance: Degrades under sunlight unless stabilized

• Poor Adhesion: Difficult to paint or bond without surface treatment

• Lower Rigidity: Compared to ABS or polycarbonate

• Shrinkage: High shrinkage rate must be compensated in mold design

• Weld Lines: More visible due to crystallinity

Additives and Modifications

PP is often blended with additives to improve properties:

• Glass-fiber reinforced PP: For added stiffness and dimensional control

• UV stabilizers: For outdoor applications

• Antistatic agents: For electronics

• Impact modifiers: To improve toughness in cold temperatures

♻️ PP vs. ABS: Comparison

Environmental Impact

Polypropylene is recyclable (resin code #5) and commonly reprocessed for use in non-critical applications. It burns cleanly and does not produce harmful gases, making it a relatively eco-friendly option.

Looking for PP Molding Support?

Whether you're producing high-volume parts like automotive components or consumer packaging, partnering with an experienced mold supplier—like SWY MOULD—can make a big difference. From mold design optimization to cycle time reduction, expert guidance ensures cost-effective and high-quality results.
